Model PW121

Power 2150 SHP

Length 84 ''

Width 25 ''

Height 31 ''

The PW100 family is the engine of choice for modern 30 to 90 passenger turboprop airliners around the world thanks to its outstanding reliability, durability and operating economics. Offering the lowest fuel consumption and carbon emissions, and incorporating the latest, proven advanced technologies, PW100 engines have demonstrated they are the greenest in the airline industry for the shorter routes served by the regional airlines.

Ranging in power from 1,800 shp to over 5,000 shp, PW100 engines are available in 31 models, offering unsurpassed flexibility and capability for a variety of applications. PW100 engines power aircraft in service with 365 operators in 124 countries. More than 6,000 PW100 engines (PW118 to PW150) have been produced since the family entered service in 1984, accumulating more than 100 million flying hours. PW100 engines have demonstrated their versatility in powering aircraft applications spanning the airlines, coastal surveillance, fire fighting and cargo transport.

Operators of PW100 engines are supported by P&WC’s industry-leading global customer support. This includes over 30 P&WC-owned and designated service facilities around the world, more than 100 field support representatives on all major continents, a 24/7 Customer First Centre for rapid expert support, the most advanced diagnostic capabilities for this market and the largest pool of P&WC rental and exchange engines in the industry.

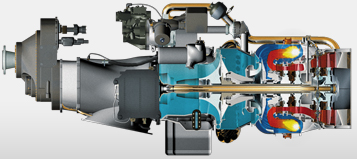

PW100 engines incorporate the latest advanced technologies in the drive to exceed our customers’ expectations in performance, reliability, durability, fuel consumption and environmental friendliness. PW100-powered regional turboprop aircraft consume 25 to 40 percent less fuel and produce up to 50 percent lower CO2 emissions than similar sized jets, with correspondingly lower greenhouse gases. 31 PW100 models have been produced ranging in shaft horsepower power from 1,800 shp to 5,000 shp. The PW100 is a three-shaft, two-spool engine. Low pressure and high pressure compressors are powered independently by cooled turbine stages. A third shaft couples the power turbine to the propeller through a reduction gearbox, optimized to establish the best combination of engine and propeller efficiencies. The result is class-leading fuel consumption and low green house emissions. The latest materials, design technologies and advanced engine control have enabled PW100 engines to regularly achieve more than 10,000 hours on-wing without a shop visit, an impressive dispatch reliability record and provide the pilot and maintenance crew with easy engine operation and maintenance.

PW118 to PW127 Models

Two-spool, two-stage centrifugal compressors

• All rotors integrally bladed
• Each driven independently by low pressure and high pressure
• No variable geometry
• Easy electric start – no APU required

PW118 to PW127 Models

Reverse flow combustor

• Low emissions, high stability, easy starting, durable

Single-stage low pressure and high pressure turbines

• Advanced materials and cooling technology for long life

Two-stage power turbine

• Free turbine, shrouded blades

Off-set reduction gearbox

• Rugged design for high durability
• 1,200 to 1,300 rpm output speed for low propeller noise

Electronic engine control

• Ease of operation, reduced workload
• Ease of operation, reduced workload

PW150 Models

Reverse flow combustor

• Advanced, effusion cooling
• High efficiency and durability, low emissions and low noise

Single-stage low pressure and high pressure turbines

• Advanced materials and cooling technology for long life

Three-stage power turbine

• Free turbine, shrouded blades

Off-set reduction gearbox

• Rugged design for high durability
• 1,020 rpm output speed for low propeller noise

FADEC (Full Authority Digital Engine Control)

• Dual channel redundancy
• Ease of operation, reduced workload

	Thermodynamic Power Class* (ESHP***)	Mechanical Power Class* (SHP)	Propeller Speed (Max. RPM)	Height** (Inches)	Width** (Inches)	Length** (Inches)
PW150 Series	6,200	5,000	1,020	44	30	95
PW127 Series	3,200	2,750	1,200	33	26	84
PW123/124 Series	3,000	2,400	1,200	33	26	84
PW120 Series	2,400	2,100	1,200	31	25	84
PW118 Series	2,180	1,800	1,300	31	25	81

* Powers are approximate values at take-off. Available at sea level, standard day, static conditions, uninstalled.

** Dimensions are approximate values.

*** Equivalent Shaft Horsepower : includes estimated equivalent contribution of exhaust thrust.

• Alenia Aeronautica EADS ATR 42-300/320
• Bombardier Aerospace Q100
